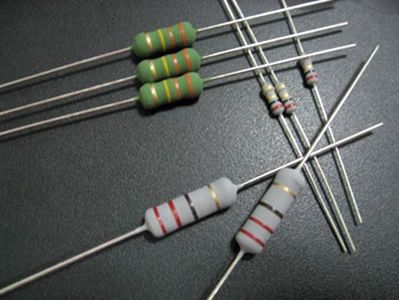

Metal Oxide Film Fixed Resistors (MOR/CMO)
金屬氧化膜固定電阻器
|
|
Features
特點
|
1. Good performance in moisture resistance, small size, anti-oxidization ,good thermal stability, nonflammability, overload
stability.
耐溫、抗氧化、熱穩定性好、不燃性、超負載穩定性好。
2. Operating ambient temperature:-55°C ~ +155°C.
使用環境溫度。
3. The surface is nonflammable ,the normal size coating is brick red
and the small size coating is green.
表面涂不燃性面漆，本體為磚紅色，小型化為綠色。
4. Resistance tolerance阻值誤差: ±2%, ±5%.
|
|
Part No.
料號
|
Power
功率
|
Resistance
range
阻值范圍
|
Max.
working
voltage最大工作電壓
|
Max.
overload
voltage
最大負荷電壓
|
Max.
pulse
voltage
最高脈沖電壓
|
Max.
Insulation
Voltage
最高絕緣
電壓
|
|
CMO016
MOR016
|
1/8W
1/6W
|
0R~1M
|
150V
|
300V
|
300V
|
200V
|
|
CMO14S
MOR14S
|
1/4WS
|
0R~1M
|
150V
|
300V
|
300V
|
200V
|
|
CMO014
MOR014
|
1/4W
|
0R~1M
|
200V
|
400V
|
500V
|
250V
|
|
CMO12S
MOR12S
|
1/2WS
|
0R~1M
|
200V
|
400V
|
500V
|
250V
|
|
CMO012
|
1/2W
|
0R1~1M
|
250V
|
400V
|
500V
|
250V
|
|
MOR01S
|
1WS
|
0R1~1M
|
350V
|
600V
|
750V
|
350V
|
|
CMO01B
|
1W
|
0R1~1M
|
350V
|
600V
|
750V
|
350V
|
|
MOR02S
|
2WS
|
0R1~1M
|
350V
|
600V
|
750V
|
350V
|
|
MOR02B
|
2W
|
0R1~1M
|
350V
|
600V
|
750V
|
350V
|
|
MOR03S
|
3WS
|
0R1~1M
|
350V
|
600V
|
750V
|
350V
|
|
MOR03B
|
3W
|
0R1~1M
|
500V
|
800V
|
1000V
|
500V
|
|
MOR05S
|
5WS
|
0R1~1M
|
500V
|
800V
|
1000V
|
500V
|
|
Note
備注
|
1.“S” means small size, 功率后面的“S”表示小型化。
3.If the calculated rated voltage is higher than Max.
working voltage, it will be got the lower value.
當計算得出的額定電壓大于最大工作電壓，使用時取二者較小值。
|
|
Test Item
測試項目
|
Test Condition 測試條件
|
Performance
性能
|
|
Temperature
Coefficient
溫度系數
|
The resistance value at normal temperature and normal
temperature added 100°C, calculate per °C resistance value change rate. 在常溫及常溫+100°C時分別測量電阻值并計算每度的阻值變化。
|
±350ppm/°C
|
|
Short Time overload
短時間過負荷
|
10×rated voltage or Max. overload voltage(get the lower) for 5 seconds. 施加10倍額定功率的電壓或最高負荷電壓（取較小者）5秒。
|
R≤±(1%R0+0.05Ω)
|
|
Pulse overload
斷續過負荷
|
At 4×rated voltage or Max. pulse overload voltage(get the lower)cycle 10000±200times(1second on,25 seconds off).4倍額定電壓或最高負荷斷續電壓（取較小者）測試1秒，停25秒，循環10000±200次。
|
R≤±(2%R0+0.05Ω)
|
|
Resistance to
soldering
Heat
耐焊接熱
|
Immerge into the 350±10°C tin stove for 2~3seconds. 在350±10°C錫爐中浸入2~3秒。
|
R≤±(1%R0+0.05Ω)
|
|
Solderability
可焊性
|
Immerge into the 245±3°C tin stove for 2~3seconds. 在245±3°C錫爐中浸入2~3秒。
|
The soldering area
is over 95%焊錫面積覆蓋率達95%以上
|
|
Temperature cycling
溫度循環
|
At -55°C for 30 min. ,then at+25°C for 10~15°C,then at +125°C for 30 min., then at +25°C for 10~15 min., total 5cycles. 在-55°C時放置30分鐘，然后在+25°C時放置10~15分鐘，然后再在+275°C時放置30分鐘，接著在+25°C時放置10~15分鐘，共循環5次。
|
R≤±(1%R0+0.05Ω)
|
|
Load life in humidity
耐濕負荷壽命
|
Overload rated voltage or Max. working voltage(get the lower) for 1000 hours(1.5hours on and 0.5 hours off) at the 40±2°C and 90~95% relative humidity. 在溫度為40±2°C，相對濕度為90~95%的恒溫恒濕箱中，施加額定電壓或最大工作電壓（取較小者）共1000小時（通電0.5小時，斷電0.5小時）
|
R≤±(5%R0+0.05Ω)
|
|
Load life in heat
耐溫負荷壽命
|
|
R≤±(5%R0+0.05Ω)
|
